The Energy Challenge of Our Time
Picture this: You wake up to your phone alarm, flip on the lights, grab a hot shower, microwave your breakfast, and hop in a car to school. Before 8 AM, you’ve already consumed energy from multiple sources – electricity from the grid, natural gas for hot water, and gasoline for transportation. This daily routine, multiplied by billions of people worldwide, represents one of the most pressing environmental challenges of our time: how do we meet our ever-growing energy demands while protecting the planet we call home?
Welcome to AP Environmental Science Unit 6: Energy Resources and Consumption – arguably one of the most relevant and fascinating units you’ll study in APES. This topic isn’t just about memorizing facts for your exam; it’s about understanding the fundamental systems that power modern civilization and the environmental trade-offs we make every single day.
In this unit, we’ll explore everything from the fossil fuels that currently dominate our energy landscape to the renewable alternatives that promise a cleaner future. We’ll dive deep into energy efficiency, examine global consumption patterns, and analyze the environmental impacts of our energy choices. By the end of this comprehensive guide, you’ll not only be prepared to ace the AP Environmental Science exam but also understand your role as an informed citizen in shaping our planet’s energy future.
Did You Know? The average American uses about 100 kilowatt-hours of electricity per day – enough to power a 100-watt light bulb continuously for over 40 days! That’s roughly 12 times the global average and highlights the massive disparities in energy consumption worldwide.
Energy isn’t just an environmental science topic; it’s the foundation of modern society, the driver of economic development, and increasingly, the key to addressing climate change. As future environmental leaders, understanding these energy systems will be crucial to solving the sustainability challenges that lie ahead.
Fundamental Concepts: The Building Blocks of Energy Systems
Understanding Energy: The Basics
Before we dive into specific energy resources, let’s establish the fundamental concepts that govern all energy systems. Energy is the capacity to do work, and it exists in many forms – kinetic energy (motion), potential energy (stored energy), thermal energy (heat), chemical energy (stored in bonds), and electromagnetic energy (light and radiation).
The First Law of Thermodynamics tells us that energy cannot be created or destroyed, only converted from one form to another. This principle governs every energy system on Earth. When you burn gasoline in a car engine, you’re converting chemical energy into kinetic energy (motion) and thermal energy (heat). The Second Law of Thermodynamics adds a crucial caveat: every energy conversion involves some energy being “lost” as heat, making no energy conversion 100% efficient.
Energy Quality and Efficiency

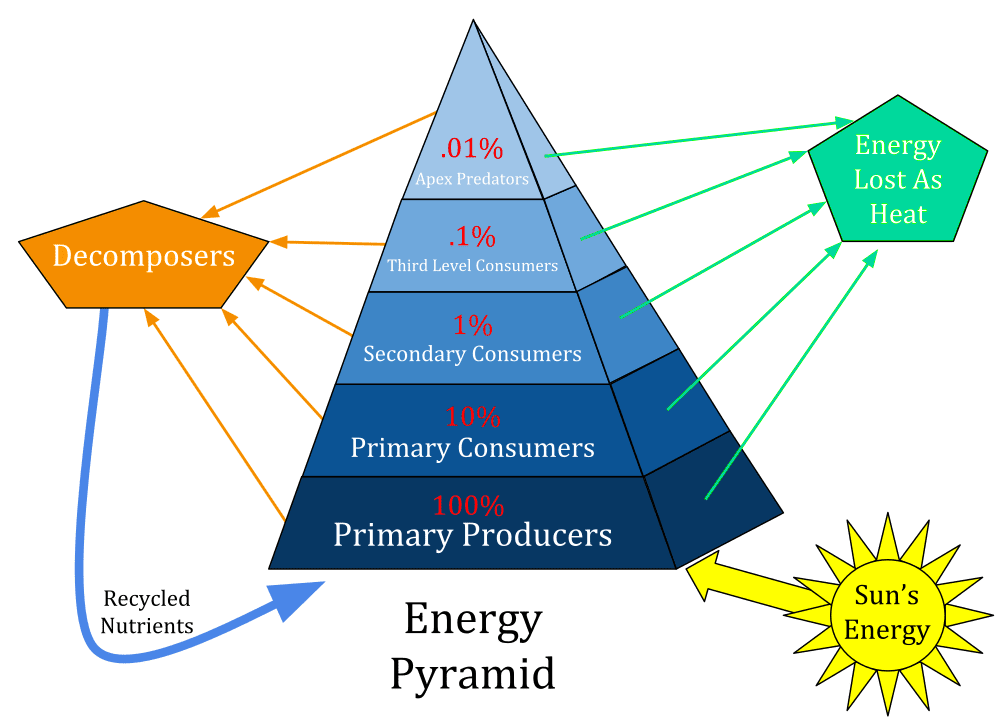

Not all energy is created equal. Energy quality refers to the usefulness of different energy forms. High-quality energy (like electricity or gasoline) can perform many different types of work and is highly concentrated. Low-quality energy (like the heat in ocean water) is dispersed and harder to harness for useful work.
Energy efficiency measures how much useful energy output we get from energy input. A traditional incandescent light bulb converts only about 5% of electrical energy into light – the rest becomes heat. Compare this to LED bulbs, which convert about 20-25% of electrical energy into light, making them four to five times more efficient.
Primary vs. Secondary Energy Sources
Understanding the distinction between primary and secondary energy sources is crucial for APES success. Primary energy sources exist in nature and haven’t been converted by humans – think crude oil, natural gas, sunlight, wind, and uranium. Secondary energy sources result from converting primary sources – electricity, gasoline, and hydrogen are prime examples.
This distinction matters because every conversion step reduces overall efficiency. When we burn coal at a power plant to generate electricity, we lose about 60-70% of the coal’s original energy content as waste heat. Then, transmission and distribution lose another 5-10% before electricity reaches your home.
Energy Units and Measurements
Energy measurements can seem confusing, but mastering them is essential for the AP exam. Here are the key units you need to know:
- Joule (J): The basic SI unit of energy
- Calorie (cal): The energy needed to heat 1 gram of water by 1°C
- British Thermal Unit (BTU): The energy needed to heat 1 pound of water by 1°F
- Kilowatt-hour (kWh): A unit of electrical energy (1,000 watts used for 1 hour)
- Quad: One quadrillion BTUs, used for national energy statistics
Study Tip: Remember that power (measured in watts) is the rate of energy use, while energy is power multiplied by time. Think of it like water from a faucet – the flow rate is power, and the total amount of water collected over time is energy.
The Global Energy Mix
Currently, the world’s primary energy consumption breaks down roughly as follows:
- Oil: 31% (primarily transportation)
- Coal: 27% (primarily electricity generation)
- Natural Gas: 24% (electricity, heating, industrial processes)
- Hydroelectric: 7%
- Nuclear: 4%
- Other renewables: 7% (wind, solar, biomass, geothermal)
These percentages vary dramatically by country and region, reflecting different resource availability, economic development, and policy choices.
Energy and Economic Development
There’s a strong correlation between energy consumption and economic development, often measured by the Human Development Index (HDI). As countries develop economically, their per-capita energy consumption typically increases, but this relationship isn’t linear. Some developed nations have achieved high living standards with relatively moderate energy consumption through efficiency improvements and economic shifts toward service industries.
The concept of energy intensity – energy consumption per unit of economic output – helps us understand how efficiently different economies use energy. Countries with high energy intensity either have energy-intensive industries or use energy inefficiently. Improving energy intensity is crucial for sustainable development.
Fossil Fuels: The Foundation of Modern Energy
Coal: The Workhorse of Electricity
Coal powered the Industrial Revolution and remains the world’s largest source of electricity generation. Understanding coal begins with its formation – ancient plant matter compressed and heated over millions of years in oxygen-poor environments. This process created different coal types with varying energy content:
- Lignite: Lowest energy content, high moisture, “brown coal”
- Subbitumineous: Medium energy content, most common in the western US
- Bituminous: High energy content, most common globally
- Anthracite: Highest energy content, burns cleanest, least common
Coal extraction occurs through two primary methods. Surface mining (including strip mining and mountaintop removal) is cheaper and safer for workers but more environmentally destructive. Underground mining has less surface impact but poses greater risks to miners and can cause subsidence.
The environmental impacts of coal are extensive. Coal combustion releases more carbon dioxide per unit of energy than any other fossil fuel – about 2.2 pounds of CO₂ per kilowatt-hour of electricity. Coal plants also emit sulfur dioxide (causing acid rain), nitrogen oxides (contributing to smog), particulate matter (respiratory health impacts), and toxic metals like mercury.

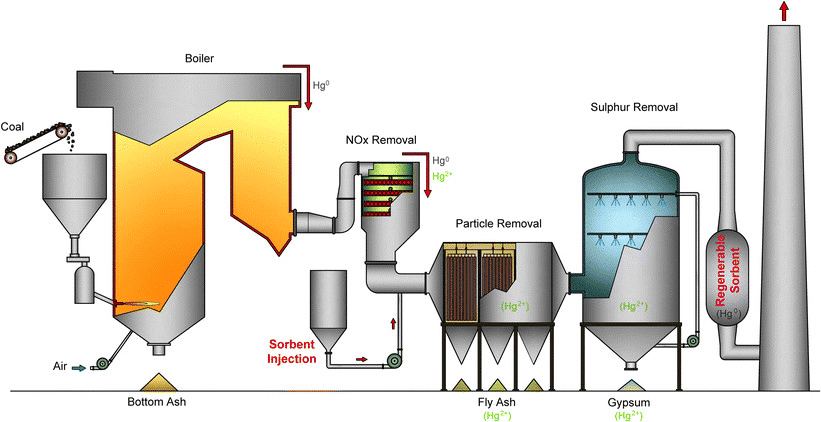

Clean coal technologies attempt to reduce these impacts. Flue gas desulfurization (scrubbers) remove sulfur dioxide. Selective catalytic reduction reduces nitrogen oxides. Carbon capture and storage (CCS) aims to capture CO₂ emissions and store them underground, though this technology remains expensive and largely unproven at scale.
Petroleum: The Liquid Energy Revolution
Oil, or petroleum, formed from ancient marine organisms subjected to heat and pressure over geological time. This complex mixture of hydrocarbons revolutionized transportation and became the foundation of the modern chemical industry.
Oil extraction has evolved dramatically. Conventional drilling targets easily accessible reserves, while unconventional extraction includes hydraulic fracturing (fracking) for tight oil, oil sands processing, and deepwater drilling. Each method has distinct environmental trade-offs.
Fracking deserves special attention for the APES exam. This process involves injecting high-pressure water, sand, and chemicals into underground rock formations to create fractures that release trapped oil and gas. Environmental concerns include groundwater contamination, air quality impacts, increased seismic activity, and massive water consumption – up to 5 million gallons per well.
Oil refining separates crude oil into useful products through distillation and chemical processing. The process yields gasoline, diesel, jet fuel, heating oil, asphalt, and petrochemical feedstocks. Different crude oils yield different product mixes, and refineries can be configured to optimize for specific products.
The environmental impacts of oil span its entire lifecycle. Extraction can damage ecosystems, contaminate water supplies, and disrupt communities. Transportation risks include pipeline spills and tanker accidents – remember the Exxon Valdez (1989) and Deepwater Horizon (2010) disasters. Combustion produces carbon dioxide, nitrogen oxides, carbon monoxide, and particulate matter.
Natural Gas: The “Cleaner” Fossil Fuel
Natural gas, primarily methane (CH₄), burns cleaner than coal or oil, producing about half the carbon dioxide per unit of energy compared to coal. This has made it the “bridge fuel” in many countries’ energy transitions.
Conventional natural gas extraction taps into porous rock formations where gas has accumulated. Unconventional extraction includes fracking for shale gas, coal bed methane extraction, and tight gas recovery. The fracking boom has transformed US energy markets and geopolitics.
Natural gas applications include electricity generation (increasingly replacing coal), residential and commercial heating, industrial processes, and vehicle fuel (compressed natural gas or CNG). Combined cycle gas turbines achieve high efficiency by using hot exhaust gases to generate additional electricity through steam turbines.
However, natural gas isn’t without environmental concerns. Methane leakage throughout the production and distribution system is particularly problematic because methane is 25-30 times more potent than CO₂ as a greenhouse gas over a 100-year timeframe. Studies suggest that if methane leakage exceeds 2-3% of production, natural gas may have climate impacts comparable to coal.
Fossil Fuel Reserves and Peak Production
Understanding proven reserves versus resources is crucial. Proven reserves are economically extractable with current technology and prices. Resources include all potentially extractable deposits. As technology improves and prices rise, resources can become reserves.
Peak oil theory suggests that oil production will eventually reach a maximum and then decline as reserves are depleted. While global conventional oil production may have peaked around 2005, unconventional sources like shale oil have extended the timeline. However, these sources often have higher environmental costs and lower energy returns on energy invested (EROEI).
The concept of EROEI measures how much energy we get out compared to energy invested in extraction and processing. Early oil wells had EROEI ratios of 100:1, meaning 100 units of energy output for every 1 unit invested. Today’s oil sources often have much lower ratios – tar sands might be 3:1 or 4:1, barely above the minimum needed for a functioning society.
Nuclear Power: Splitting Atoms for Energy
Nuclear Fission Fundamentals
Nuclear power harnesses the energy released when heavy atomic nuclei split apart. In nuclear reactors, uranium-235 (U-235) undergoes controlled fission when struck by neutrons, releasing enormous amounts of energy, additional neutrons, and radioactive fission products.
The nuclear fuel cycle begins with uranium mining, typically from open-pit or underground mines. Raw uranium ore contains less than 1% U-235, the fissile isotope needed for most reactors. Uranium enrichment increases U-235 concentration to 3-5% for reactor fuel through complex and energy-intensive processes.

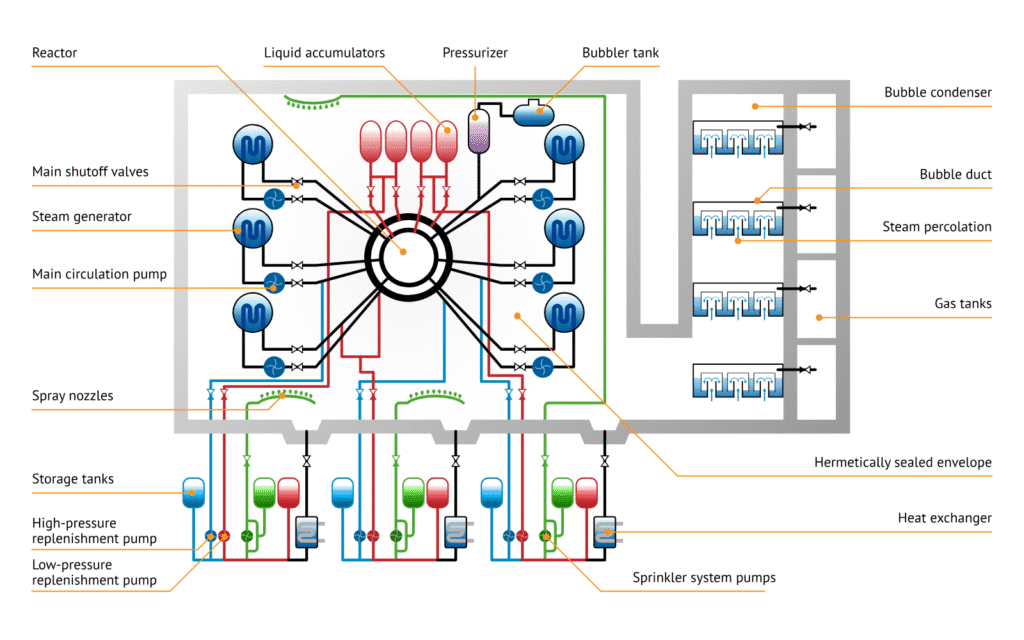

Nuclear reactor design varies, but most commercial reactors use light water as both coolant and neutron moderator. Pressurized water reactors (PWRs) keep water under high pressure to prevent boiling in the reactor core, while boiling water reactors (BWRs) allow controlled boiling to generate steam directly.
Nuclear power’s advantages include zero direct carbon emissions during operation, high energy density (a single uranium pellet contains as much energy as a ton of coal), and reliable baseload power generation. Nuclear plants can operate for 18-24 months between refueling, providing consistent electricity regardless of weather conditions.
Nuclear Safety and Accidents
Nuclear safety relies on multiple barriers containing radioactive materials: the fuel pellet ceramic matrix, metal fuel rod cladding, reactor pressure vessel, and containment structure. This defense in depth approach aims to prevent any single failure from causing radiation release.
Major nuclear accidents have shaped public perception and regulatory policy. Three Mile Island (1979) involved partial core meltdown but minimal radiation release due to intact containment. Chernobyl (1986) resulted from reactor design flaws and operator errors, causing widespread radioactive contamination. Fukushima (2011) demonstrated vulnerabilities to natural disasters when earthquake and tsunami damage led to multiple reactor meltdowns.
These accidents highlight the importance of reactor design, operator training, emergency planning, and robust safety culture. Modern reactor designs incorporate passive safety systems that function without human intervention or external power, potentially reducing accident risks.
Nuclear Waste Management
Radioactive waste classification depends on radioactivity levels and heat generation. High-level waste (spent fuel) remains dangerous for thousands of years and requires careful management. Intermediate-level waste includes reactor components and medical isotopes. Low-level waste includes contaminated clothing and tools.
Spent fuel storage begins in cooling pools at reactor sites, where water provides shielding and cooling. After several years, fuel can be transferred to dry cask storage – robust containers that rely on passive air cooling. Long-term solutions remain controversial.
Reprocessing can recover unused uranium and valuable plutonium from spent fuel, but it’s expensive and raises proliferation concerns. Geological disposal in deep, stable rock formations is the preferred long-term solution, but political and technical challenges have delayed implementation in most countries.
Nuclear Economics and Policy
Nuclear power economics have changed dramatically since the technology’s early days. Construction costs have increased substantially due to enhanced safety requirements, complex designs, and limited recent experience. Small modular reactors (SMRs) promise lower capital costs and enhanced safety through simpler, standardized designs.
The nuclear renaissance of the 2000s largely stalled due to cost overruns, schedule delays, and competition from cheap natural gas and renewables. However, climate change concerns have renewed interest in nuclear power as a low-carbon energy source capable of providing reliable baseload electricity.
Nuclear fusion remains the “holy grail” of nuclear energy – potentially providing unlimited clean energy by fusing light atomic nuclei. However, fusion requires extreme temperatures and pressures that remain technically challenging and economically unproven despite decades of research.
Renewable Energy: Harnessing Nature’s Power
Solar Energy: Capturing Sunlight
Solar energy reaches Earth at a rate of about 120,000 terawatts – roughly 6,000 times current global energy consumption. This abundant resource can be harnessed through photovoltaic (PV) panels that convert sunlight directly into electricity or solar thermal systems that use concentrated sunlight to generate heat.

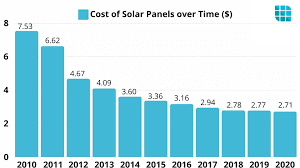

Photovoltaic technology relies on the photoelectric effect in semiconductor materials, typically silicon. When photons strike the PV cell, they knock electrons loose, creating electrical current. Monocrystalline silicon panels offer highest efficiency (20-22%) but cost more to manufacture. Polycrystalline silicon panels are cheaper but less efficient (15-17%). Thin-film technologies using materials like cadmium telluride offer lower costs but also lower efficiency.
Solar thermal systems concentrate sunlight using mirrors or lenses to heat working fluids that drive turbines or provide direct heating. Concentrated solar power (CSP) plants can achieve high temperatures and include thermal storage systems that allow electricity generation even after sunset.
Solar energy’s advantages include zero fuel costs, minimal environmental impact during operation, and rapidly declining costs – solar PV prices have dropped over 90% since 2010. However, solar energy faces challenges from intermittency (only generating during daylight hours), energy storage requirements, and land use needs for utility-scale installations.
Wind Energy: Harvesting Air Currents
Wind energy converts kinetic energy from moving air into electricity using turbines with aerodynamically designed blades. As wind strikes the blades, it creates lift and drag forces that rotate the rotor, which drives an electrical generator through a gearbox.
Wind resource assessment is crucial for successful projects. Wind speeds typically increase with height above ground, following a logarithmic profile. Wind power density varies with the cube of wind speed – doubling wind speed increases power output eightfold. This makes site selection critical for economic viability.
Modern wind turbines are engineering marvels with rotors spanning over 400 feet and towers reaching 300+ feet tall. Horizontal-axis turbines dominate the market due to their efficiency, though vertical-axis designs offer advantages in some applications. Offshore wind accesses stronger, more consistent winds but requires specialized foundations and transmission infrastructure.
Wind energy benefits include zero fuel costs, minimal water consumption, and compatibility with agricultural land use (farmers can continue farming between turbines). Environmental concerns include bird and bat mortality, noise, visual impacts, and intermittency that requires backup power or storage systems.
Wind integration challenges arise from variability and geographic concentration. Modern power grids need flexible generation and transmission infrastructure to accommodate large amounts of wind power. Energy storage and demand response programs can help match supply and demand.
Hydroelectric Power: Flowing Water Energy
Hydroelectric power harnesses the kinetic energy of flowing or falling water to generate electricity. Large hydroelectric dams dominate global hydro capacity, while small hydro and run-of-river systems offer lower environmental impact alternatives.
Dam-based hydroelectricity creates reservoirs that provide water storage for electricity generation, flood control, irrigation, and recreation. Pumped storage hydropower uses excess electricity to pump water uphill during low demand periods, then releases it through turbines when electricity is needed, serving as a massive battery system.
Hydroelectric advantages include long plant lifespans (50-100 years), low operating costs, rapid response to demand changes, and multipurpose reservoir benefits. However, large dams significantly impact river ecosystems, block fish migration, alter downstream flow patterns, and can displace communities.
Small-scale hydro systems (under 10 MW) can provide electricity with minimal environmental impact. Micro-hydro systems serve remote communities, while run-of-river designs avoid large reservoirs by using natural stream flow.
Climate change poses challenges for hydroelectric power through altered precipitation patterns and increased drought frequency. Some regions may see increased hydro potential, while others face reduced water availability.
Geothermal Energy: Earth’s Internal Heat
Geothermal energy taps into Earth’s internal heat through hydrothermal systems where hot water or steam occurs naturally near the surface, or enhanced geothermal systems (EGS) that create artificial reservoirs in hot dry rock.
Geothermal electricity generation typically requires temperatures above 150°C (300°F). Dry steam plants use natural steam directly to drive turbines. Flash steam plants convert high-pressure hot water into steam. Binary cycle plants transfer heat to a working fluid with a lower boiling point, allowing electricity generation from lower-temperature resources.
Geothermal heat pumps use stable ground temperatures (50-60°F year-round) for building heating and cooling. These systems can achieve efficiencies 3-4 times higher than conventional heating and cooling systems because they move heat rather than generate it.
Geothermal energy provides baseload power with minimal land footprint and virtually no emissions during operation. However, geothermal resources are geographically limited to areas with suitable geology, typically near tectonic plate boundaries or volcanic regions.
Biomass and Biofuels: Stored Solar Energy
Biomass energy comes from recently living organic materials that stored solar energy through photosynthesis. Traditional biomass (wood, crop residues, animal waste) provides energy for billions of people globally, while modern biomass includes engineered systems with higher efficiency and lower emissions.
Biofuel production converts biomass into liquid or gaseous fuels. First-generation biofuels use food crops – corn ethanol and soybean biodiesel dominate US production. Second-generation biofuels use non-food biomass like crop residues, wood chips, or dedicated energy crops. Third-generation biofuels from algae remain largely experimental.
Biomass electricity generation burns organic materials in power plants, often co-firing with coal to reduce emissions. Anaerobic digestion converts organic waste into methane-rich biogas suitable for electricity generation or vehicle fuel.
Biomass sustainability depends on feedstock sources and production methods. Sustainable biomass doesn’t compete with food production, doesn’t require excessive fertilizer or water inputs, and maintains soil health. Unsustainable biomass production can contribute to deforestation, soil erosion, and food security issues.
Life cycle analysis is crucial for evaluating biomass energy’s environmental benefits. When accounting for land use changes, fertilizer production, transportation, and processing energy, some biofuels may have limited climate benefits compared to fossil fuels.
Real-World Applications: Energy in Action
Case Study: Germany’s Energiewende
Germany’s Energiewende (energy transition) represents one of the world’s most ambitious attempts to transform a major economy’s energy system. Launched in the early 2000s, this policy aims to phase out nuclear power while dramatically increasing renewable energy and reducing greenhouse gas emissions.
The program’s successes include remarkable growth in renewable electricity – from about 6% in 2000 to over 40% by 2020. Germany became a global leader in solar and wind deployment, driving down costs worldwide through early market creation and technology development.
However, the Energiewende also faces significant challenges. Electricity prices have increased substantially due to renewable energy subsidies and grid infrastructure investments. Grid stability concerns arise from intermittent renewables, requiring backup power and storage systems. Coal consumption initially increased as nuclear plants closed before sufficient renewable capacity came online.
Key lessons from Germany’s experience include the importance of comprehensive planning, grid flexibility, energy storage, and public support for energy transitions. The program demonstrates both the possibilities and complexities of transforming energy systems in developed economies.
Case Study: Costa Rica’s Renewable Success
Costa Rica provides an inspiring example of renewable energy success in a developing nation. The country generates over 99% of its electricity from renewable sources – primarily hydroelectric (70%), wind (17%), geothermal (13%), and solar (1%).
Several factors enabled Costa Rica’s renewable success:
- Abundant natural resources: High rainfall for hydroelectric power, volcanic activity for geothermal energy, and strong winds in mountain passes
- Government commitment: Long-term policies supporting renewable development and environmental protection
- Institutional capacity: Strong national utility (ICE) with technical expertise and financial resources
- Geographic advantages: Small size and mountainous terrain suitable for hydroelectric development
However, Costa Rica’s model may not be easily replicable elsewhere. The country’s small size, abundant water resources, and lack of fossil fuel deposits create unique conditions. Additionally, the electricity sector represents only about 25% of total energy consumption – transportation still relies heavily on imported petroleum.
Case Study: China’s Solar Manufacturing Dominance
China’s rise to dominate global solar panel manufacturing illustrates how government policy and industrial strategy can reshape energy markets. Through massive investments, favorable policies, and economies of scale, Chinese companies now produce about 70% of global solar panels.
This transformation began with government support for domestic solar manufacturers, including subsidized loans, land grants, and export incentives. As production scaled up, costs plummeted – solar panel prices dropped over 90% between 2010 and 2020, making solar competitive with fossil fuels in many markets.
China’s solar success demonstrates the importance of industrial policy, scale effects, and learning curves in renewable energy development. However, it also raises concerns about trade dependence, environmental impacts of manufacturing, and market concentration.
Energy Access and Development
Energy poverty affects nearly 1 billion people worldwide who lack access to electricity and 3 billion who rely on traditional biomass for cooking. Energy access is fundamental to economic development, education, healthcare, and quality of life.
Off-grid renewable energy systems increasingly provide cost-effective solutions for remote areas. Solar home systems, mini-grids, and pay-as-you-go financing models are expanding energy access in Africa and Asia. These distributed systems can be cheaper and faster to deploy than extending centralized grids to remote areas.
Clean cooking solutions address health and environmental impacts of traditional biomass burning. Improved cookstoves reduce fuel consumption and emissions, while biogas digesters convert organic waste into clean cooking fuel. However, adoption rates remain slow due to cultural preferences, upfront costs, and limited supply chains.
Transportation Energy Transitions
Transportation accounts for about 24% of global energy-related CO₂ emissions, making it crucial for climate change mitigation. Electric vehicles (EVs) are rapidly gaining market share, supported by declining battery costs, improving performance, and supportive policies.
Battery technology improvements drive EV adoption. Lithium-ion batteries have seen dramatic cost reductions and performance improvements, though concerns remain about resource availability (lithium, cobalt) and recycling. Next-generation technologies like solid-state batteries promise further improvements.
Charging infrastructure development parallels EV growth. Fast-charging networks along highways enable long-distance travel, while workplace and residential charging handle daily needs. Grid integration challenges include managing peak charging demand and utilizing EVs as mobile energy storage.
Alternative fuels for transportation include hydrogen fuel cells for long-haul trucking and shipping, biofuels for aviation, and synthetic fuels produced using renewable electricity. Each faces distinct technical and economic challenges.
Environmental Connections: Energy’s Broader Impacts
Climate Change and Energy Systems
Energy production and consumption account for about 75% of global greenhouse gas emissions, making the energy sector central to climate change mitigation. Different energy sources have vastly different carbon footprints when considering their full lifecycle impacts.
Fossil fuel combustion directly releases CO₂ stored underground for millions of years. Coal produces about 820 kg CO₂/MWh, natural gas about 350 kg CO₂/MWh, and oil products fall between these values. These direct emissions don’t include upstream impacts from extraction, processing, and transportation.
Renewable energy sources have much lower lifecycle emissions, typically 10-50 kg CO₂/MWh when including manufacturing, installation, and end-of-life impacts. Nuclear power has similar low lifecycle emissions despite not being renewable.
Carbon pricing mechanisms attempt to internalize climate costs of energy choices. Carbon taxes directly price CO₂ emissions, while cap-and-trade systems create markets for emission allowances. These policies can shift energy markets toward lower-carbon alternatives.
Air Quality and Public Health
Energy systems significantly impact air quality and public health through various pollutants. Particulate matter (PM2.5 and PM10) from fossil fuel combustion causes respiratory and cardiovascular diseases. Nitrogen oxides contribute to smog formation and respiratory problems. Sulfur dioxide causes acid rain and respiratory issues.
Coal-fired power plants are particularly problematic air polluters, releasing not only conventional pollutants but also toxic metals like mercury, lead, and arsenic. Pollution control technologies can reduce these emissions but add costs and energy penalties.
Indoor air pollution from traditional biomass burning kills more people annually than outdoor air pollution in many developing countries. Clean cooking solutions and rural electrification can dramatically improve health outcomes.
Environmental justice concerns arise when energy facilities disproportionately impact low-income and minority communities. Fossil fuel extraction and power plant siting often concentrate pollution in vulnerable areas.
Water Resources and Energy
The energy-water nexus describes interconnections between energy and water systems. Energy production requires substantial water inputs for cooling, processing, and extraction. Water treatment and distribution require significant energy inputs.
Thermoelectric power plants (coal, nuclear, natural gas) withdraw enormous quantities of water for cooling – about 40% of total US water withdrawals. Once-through cooling systems withdraw more water but return most of it at higher temperatures. Closed-loop cooling systems withdraw less water but consume more through evaporation.
Hydraulic fracturing requires 2-5 million gallons of water per well, raising concerns in water-stressed regions. Oil sands extraction requires 2-4 barrels of water for each barrel of oil produced.
Renewable energy generally requires much less water than fossil fuels. Solar PV and wind need water only for occasional cleaning and maintenance. Concentrated solar power with wet cooling requires water similar to conventional power plants, but dry cooling systems can eliminate most water use.
Land Use and Ecosystem Impacts
Different energy systems have dramatically different land use footprints. Surface coal mining completely destroys existing ecosystems, while mountaintop removal has permanent landscape impacts. Oil and gas development fragments habitats through well pads, roads, and pipelines.
Renewable energy land use varies significantly by technology. Utility-scale solar requires about 5-10 acres per MW of capacity, but land between panels can often support vegetation or agriculture. Wind farms occupy large areas but leave most land available for agriculture or other uses.
Hydroelectric dams flood large land areas, destroying terrestrial ecosystems while creating artificial aquatic habitats. Large reservoirs can alter regional climate patterns and displace communities.
Bioenergy land use depends on feedstock choices. Food-based biofuels compete directly with agriculture for land, potentially contributing to deforestation and food price increases. Cellulosic biofuels from crop residues or dedicated energy crops may have lower land use impacts.
Waste and Resource Depletion
Energy systems generate various waste streams requiring careful management. Coal combustion produces fly ash, bottom ash, and flue gas desulfurization sludge containing toxic metals. Nuclear waste remains radioactive for thousands of years, requiring secure long-term storage.
Renewable energy manufacturing requires critical materials that may face supply constraints. Solar panels use silver, tellurium, and other relatively rare elements. Wind turbines require rare earth elements for permanent magnet generators. Battery storage depends on lithium, cobalt, and nickel with geographically concentrated supplies.
Circular economy approaches aim to minimize waste through reuse, recycling, and remanufacturing. Solar panel recycling can recover valuable materials, though economic incentives remain limited. Battery recycling is increasingly important as EV adoption grows.
Resource curse phenomena can affect regions with abundant energy resources, leading to economic volatility, corruption, and environmental degradation despite resource wealth.
Current Research and Trends: The Future of Energy
Energy Storage Technologies
Energy storage represents one of the most critical frontiers for clean energy deployment. Lithium-ion batteries currently dominate mobile applications and short-duration grid storage, but alternative technologies are emerging for different applications.
Long-duration storage technologies aim to store energy for hours to weeks, enabling higher renewable energy penetration. Compressed air energy storage (CAES) uses excess electricity to compress air in underground caverns, later releasing it through turbines. Liquid air energy storage offers similar concepts with different technical approaches.
Flow batteries store energy in liquid electrolytes, allowing power and energy capacity to be sized independently. Vanadium redox flow batteries show promise for grid applications due to long lifespans and deep discharge capabilities.
Green hydrogen production using renewable electricity offers long-term storage and industrial decarbonization opportunities. Electrolysis splits water into hydrogen and oxygen, creating a carbon-free fuel for transportation, heating, and industrial processes.
Smart Grids and Digitalization
Smart grid technologies integrate digital communication and control systems into electricity infrastructure, enabling more efficient and flexible grid operations. Advanced metering infrastructure (AMI) provides real-time consumption data and enables time-of-use pricing.
Demand response programs shift electricity consumption to match renewable energy availability. Smart appliances can automatically adjust operation based on grid conditions and prices. Vehicle-to-grid (V2G) technology allows electric vehicles to provide grid services when parked.
Grid-edge technologies include distributed energy resources like rooftop solar, battery storage, and electric vehicles that can provide grid services. Microgrids can operate independently during outages while normally connecting to the main grid.
Artificial intelligence and machine learning optimize energy system operations through predictive maintenance, demand forecasting, and renewable energy integration. Digital twins create virtual models of energy systems for testing and optimization.
Advanced Nuclear Technologies
Small modular reactors (SMRs) aim to reduce nuclear power costs through factory manufacturing, standardized designs, and enhanced safety features. Passive safety systems rely on natural forces rather than active systems, potentially reducing accident risks.
Generation IV reactor designs promise improved safety, efficiency, and waste characteristics. High-temperature reactors can provide industrial process heat in addition to electricity. Fast reactors can consume existing nuclear waste while generating electricity.
Fusion energy research continues advancing toward commercial viability. ITER, the international experimental reactor under construction in France, aims to demonstrate net energy gain from fusion reactions. Private companies are pursuing alternative fusion approaches with potentially faster timelines.
Carbon Capture and Utilization
Carbon capture, utilization, and storage (CCUS) technologies aim to reduce CO₂ emissions from fossil fuel use and industrial processes. Post-combustion capture removes CO₂ from exhaust gases, while pre-combustion capture removes carbon before combustion.
Direct air capture (DAC) technologies extract CO₂ directly from atmospheric air, potentially enabling negative emissions when powered by renewable energy. However, DAC remains energy-intensive and expensive.
Carbon utilization converts captured CO₂ into useful products like fuels, chemicals, or building materials. Power-to-X technologies use renewable electricity to produce synthetic fuels from CO₂ and water.
Negative emissions technologies beyond CCUS include bioenergy with carbon capture and storage (BECCS), enhanced weathering, and soil carbon sequestration. These approaches may be necessary to limit global warming to 1.5°C.
Emerging Renewable Technologies
Perovskite solar cells promise higher efficiencies and lower costs than silicon, though stability and scaling challenges remain. Organic photovoltaics offer flexible, lightweight solar panels for specialized applications.
Floating solar installations on reservoirs and other water bodies avoid land use conflicts while potentially improving panel efficiency through cooling effects. Agrivoltaics combines solar panels with agriculture, providing shade for crops while generating electricity.
Offshore wind continues advancing into deeper waters using floating platforms that access stronger, more consistent winds. Vertical axis wind turbines may offer advantages in some applications despite lower efficiency.
Ocean energy technologies harness waves, tides, and ocean temperature differences. Tidal energy provides predictable generation but limited geographic applicability. Wave energy remains largely experimental but offers enormous theoretical potential.
Study Guide Section: Mastering Energy Resources and Consumption
Key Concepts Summary
Energy Fundamentals:
- Energy cannot be created or destroyed, only converted (First Law of Thermodynamics)
- Every energy conversion involves some energy loss as heat (Second Law of Thermodynamics)
- Energy quality refers to usefulness; high-quality energy performs more work
- Primary energy sources exist in nature; secondary sources result from conversion
Energy Measurements:
- Power = energy per unit time (watts = joules/second)
- Energy = power × time (kilowatt-hours, BTUs, calories)
- EROEI (Energy Return on Energy Invested) measures energy efficiency of extraction
Fossil Fuels:
- Coal: highest CO₂ emissions, strip mining vs. underground mining impacts
- Oil: conventional vs. unconventional extraction (fracking), refining processes
- Natural gas: cleanest fossil fuel, methane leakage concerns, combined cycle efficiency
Nuclear Power:
- Fission splits heavy nuclei, releasing enormous energy
- Fuel cycle: mining → enrichment → reactor → waste storage
- Safety systems: defense in depth, passive safety features
- Waste categories: high-level (spent fuel), intermediate, low-level
Renewable Energy:
- Solar: PV (photovoltaic) vs. thermal, intermittency challenges
- Wind: kinetic energy conversion, offshore advantages, bird mortality concerns
- Hydro: large dams vs. run-of-river, ecosystem impacts
- Geothermal: hydrothermal vs. enhanced systems, heat pumps
- Biomass: first/second/third generation biofuels, sustainability concerns
Important Formulas and Calculations
Power and Energy:
- Power (W) = Energy (J) / Time (s)
- Energy (kWh) = Power (kW) × Time (h)
- 1 kWh = 3.6 × 10⁶ J
Efficiency:
- Efficiency = (Useful energy output / Total energy input) × 100%
- Overall efficiency = Efficiency₁ × Efficiency₂ × Efficiency₃…
Wind Power:
- Power ∝ Wind Speed³ (doubling wind speed increases power 8×)
- Power = ½ × ρ × A × v³ × Cp
- ρ = air density, A = rotor area, v = wind speed, Cp = power coefficient
Solar Energy:
- Solar flux at Earth’s distance = 1,361 W/m² (solar constant)
- Available solar power = Solar flux × Area × Efficiency
Carbon Emissions:
- CO₂ emissions (kg) = Energy consumed (MWh) × Emission factor (kg CO₂/MWh)
Study Tips and Memory Aids
Acronyms:
- EROEI: Energy Return On Energy Invested
- CCUS: Carbon Capture, Utilization, and Storage
- SMR: Small Modular Reactor
- PV: Photovoltaic
- CSP: Concentrated Solar Power
Memory Devices:
- Fossil fuel CO₂ ranking: “Coal Creates Most” (Coal > Oil > Natural Gas)
- Energy quality pyramid: “Electric Gas Burns Wood” (Electricity > Natural Gas > Biomass > Waste heat)
- Nuclear waste duration: “High-level waste lasts Hundreds of Half-lives”
- Renewable intermittency: “Sun and Wind Wait for Weather”
Concept Connections:
- Connect energy efficiency to thermodynamics laws
- Link renewable intermittency to storage needs
- Connect carbon pricing to energy economics
- Link energy access to development indicators
Common Exam Pitfalls
Avoid These Mistakes:
- Confusing power (rate) with energy (total amount)
- Forgetting lifecycle impacts when comparing energy sources
- Ignoring energy conversion losses in efficiency calculations
- Mixing up primary and secondary energy sources
- Overlooking intermittency challenges for renewables
- Forgetting that nuclear fuel is not renewable despite low emissions
Key Distinctions:
- Reserves vs. resources (proven vs. potential)
- Energy vs. power (total vs. rate)
- Renewable vs. sustainable (replenishable vs. environmentally sound)
- Efficiency vs. conservation (doing more with less vs. using less)
Exam Strategy Tips
Multiple Choice:
- Read questions carefully for key terms like “primary,” “renewable,” “efficient”
- Pay attention to units in calculations
- Consider lifecycle impacts, not just operational characteristics
- Look for trade-offs between different energy options
Free Response:
- Define key terms clearly
- Use specific examples and data when possible
- Explain both benefits and drawbacks of energy technologies
- Connect energy choices to environmental and economic impacts
- Address multiple scales (individual, community, national, global)
Calculation Tips:
- Check units carefully and convert when necessary
- Set up problems systematically with given information
- Show all work for partial credit
- Double-check answers for reasonableness
Practice Questions: Test Your Understanding
Multiple Choice Questions (Choose the best answer)
- Which of the following best explains why natural gas is considered a “bridge fuel” in the transition to renewable energy?
a) It can be easily stored for long periods
b) It produces fewer CO₂ emissions than coal while providing reliable baseload power
c) It requires no processing before use
d) It is completely renewable
e) It produces no air pollutants - The energy return on energy invested (EROEI) for early oil wells was approximately 100:1, while modern tar sands extraction has an EROEI of about 3:1. This change indicates that:
a) Modern extraction techniques are more efficient
b) Oil quality has improved over time
c) More energy is now required to extract the same amount of usable energy
d) Environmental regulations have reduced extraction efficiency
e) Transportation costs have increased significantly - Which renewable energy source typically requires the least amount of water for operation?
a) Hydroelectric dams
b) Concentrated solar power with wet cooling
c) Geothermal power plants
d) Wind turbines
e) Biomass power plants - A coal power plant with 35% efficiency burns coal with an energy content of 25 million BTU per ton. How much electricity (in kWh) can be generated from one ton of coal? (1 BTU = 0.000293 kWh)
a) 2,560 kWh
b) 7,325 kWh
c) 25,000 kWh
d) 35,000 kWh
e) 71,250 kWh - Which of the following is NOT an environmental concern associated with hydraulic fracturing (fracking)?
a) Groundwater contamination from chemicals
b) Increased seismic activity
c) Large water consumption requirements
d) Air quality impacts from methane emissions
e) Thermal pollution of nearby water bodies
Free Response Questions
Question 1 (10 points):
Germany’s Energiewende (energy transition) has significantly increased renewable energy use while phasing out nuclear power.
a) Identify and explain TWO benefits of Germany’s increased renewable energy use. (4 points)
b) Describe TWO challenges Germany has faced in implementing this energy transition. (4 points)
c) Explain one way that energy storage technology could help address the challenges identified in part (b). (2 points)
Question 2 (10 points):
The following data shows energy consumption and CO₂ emissions for different transportation fuels per 100 kilometers of travel:
- Gasoline: 8 liters, 18.4 kg CO₂
- Diesel: 6 liters, 15.8 kg CO₂
- Electric (coal-powered grid): 20 kWh, 16.4 kg CO₂
- Electric (renewable grid): 20 kWh, 2.1 kg CO₂
a) Calculate the CO₂ emissions per liter for gasoline and diesel fuels. Show your work. (4 points)
b) Explain why electric vehicles powered by a coal-heavy electrical grid still produce substantial CO₂ emissions. (3 points)
c) Describe TWO factors other than CO₂ emissions that should be considered when comparing these transportation options. (3 points)
Question 3 (10 points):
A small island nation currently generates 80% of its electricity from imported diesel fuel and 20% from a small hydroelectric plant. The government wants to achieve energy independence using renewable resources.
a) Identify and describe THREE renewable energy options that would be suitable for an island location. (6 points)
b) Explain TWO challenges this island might face in transitioning to renewable energy. (4 points)
Answer Key and Explanations
Multiple Choice:
- b) Natural gas burns cleaner than coal (about half the CO₂ emissions) while still providing reliable, dispatchable power that can complement intermittent renewables.
- c) Lower EROEI ratios indicate that more energy must be invested to extract each unit of usable energy, reflecting the depletion of easily accessible oil reserves.
- d) Wind turbines require minimal water only for occasional cleaning and maintenance, unlike other options that need substantial water for cooling or processing.
- a) 25 million BTU × 0.000293 kWh/BTU × 0.35 efficiency = 2,560 kWh
- e) Thermal pollution is associated with power plants that use water for cooling, not with fracking operations.
Free Response Sample Answers:
Question 1:
a) Benefits: (1) Reduced CO₂ emissions contributing to climate change mitigation; (2) Decreased dependence on fossil fuel imports, improving energy security; (3) Job creation in renewable energy industries; (4) Technological leadership and export opportunities
b) Challenges: (1) Increased electricity costs due to renewable subsidies and grid infrastructure investments; (2) Grid stability issues from intermittent renewable sources requiring backup power; (3) Public opposition to new transmission lines and wind farms
c) Battery storage systems could store excess renewable energy during peak production periods and release it when renewables aren’t generating, reducing the need for fossil fuel backup power and improving grid stability.
Conclusion and Further Exploration
Congratulations! You’ve now explored the complex world of energy resources and consumption that forms the backbone of AP Environmental Science Unit 6. From the fossil fuels that built our modern civilization to the renewable technologies that may power our future, you’ve gained insight into one of the most critical challenges facing humanity.
The key takeaway from this unit isn’t just understanding different energy technologies – it’s recognizing that energy choices involve complex trade-offs between economic, environmental, and social factors. There’s no perfect energy source; each comes with benefits and drawbacks that must be carefully weighed based on local conditions, development needs, and environmental goals.
As you prepare for the AP Environmental Science exam, remember that energy questions often connect to other APES units. Energy production affects air and water quality, climate change, biodiversity, and human health. Energy access influences economic development and social equity. Understanding these connections will help you excel not just on the exam, but in thinking about real-world environmental challenges.
Your generation will inherit both the challenges and opportunities of our energy transition. The decisions made in the coming decades about energy investments, policies, and technologies will shape the planet you’ll live on for the rest of your lives. The knowledge you’ve gained in this unit provides a foundation for becoming an informed citizen and environmental leader.
Recommended Resources for Further Learning
Books:
- “Energy and Civilization: A History” by Vaclav Smil – Comprehensive historical perspective on energy and human development
- “The Quest: Energy, Security, and the Remaking of the Modern World” by Daniel Yergin – Accessible overview of global energy challenges
- “Sustainable Energy – Without the Hot Air” by David MacKay – Quantitative analysis of energy options (free online)
Websites and Databases:
- International Energy Agency (IEA.org) – Global energy statistics and analysis
- U.S. Energy Information Administration (EIA.gov) – Comprehensive energy data and explanations
- National Renewable Energy Laboratory (NREL.gov) – Research and data on renewable technologies
Online Courses:
- “Energy Within Environmental Constraints” – University of Edinburgh (Coursera)
- “Introduction to Sustainability” – University of Illinois (Coursera)
Documentary Films:
- “An Inconvenient Truth” and “An Inconvenient Sequel” – Climate change and energy connections
- “Pandora’s Promise” – Nuclear power debate
- “The Age of Stupid” – Energy choices and climate change
Remember, the field of energy is rapidly evolving. Stay curious, keep learning, and consider how you might contribute to solving our energy challenges. Whether through careers in engineering, policy, business, or environmental science, your generation has the opportunity to create a more sustainable energy future.
Good luck on your AP Environmental Science exam, and thank you for taking the time to deeply understand these crucial environmental systems. The planet needs informed, passionate advocates like you to help navigate our energy future wisely.
Recommended –
1 thought on “AP Environmental Science Unit 6: Energy Resources and Consumption – Your Complete Study Guide”
